HDPE ELECTROFUSION MACHINE

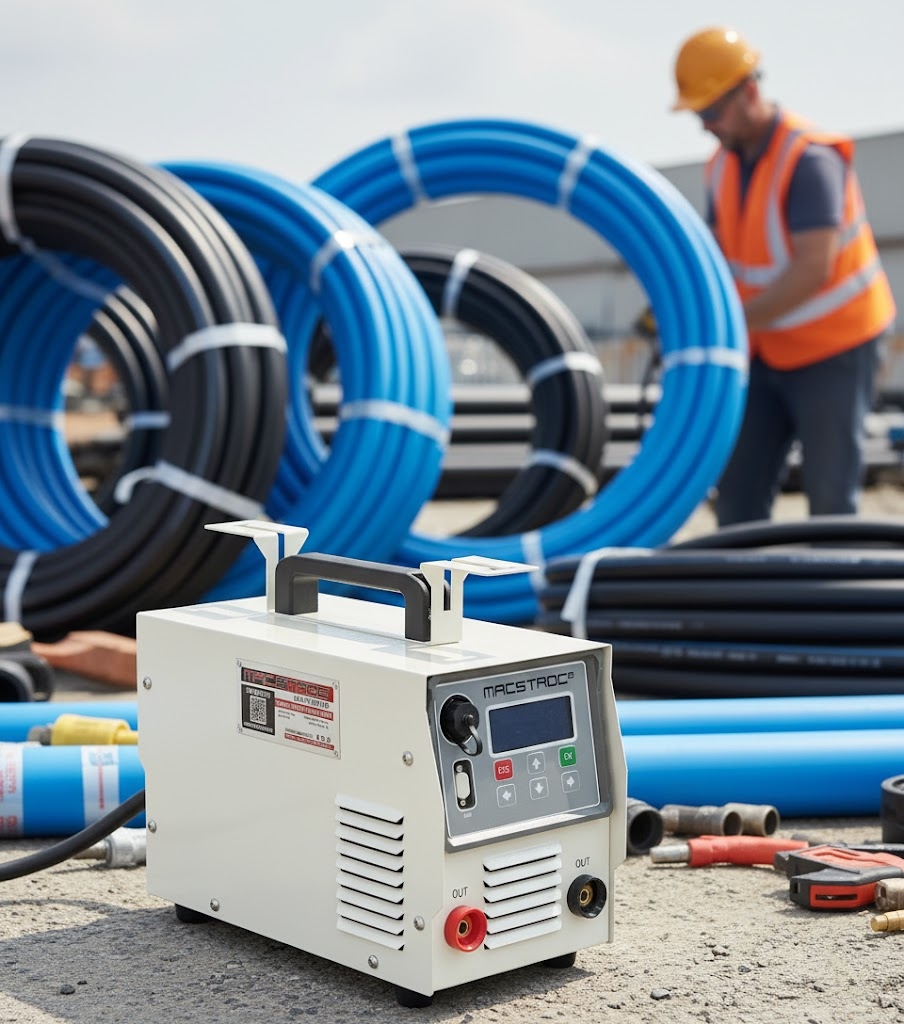

Macstroc MEFWELD Series HDPE electrofusion machines, including the MEFWELD.315, MEFWELD500, and MEFWELD1000, provide precise, reliable, and high-performance solutions for welding HDPE, PP, and PE pipes and fittings in Fujairah and across the UAE. Designed for contractors, plumbers, and construction professionals, these electrofusion machines feature advanced control systems, easy-to-use interfaces, and consistent heating cycles, ensuring strong, leak-proof joints for residential, commercial, and industrial projects. Along with our range of HDPE pipe tools, including pipe planers, scrapers, and fusion accessories, Macstroc MEFWELD machines deliver efficiency, accuracy, and durability for all HDPE pipe welding and installation needs. Trusted in Fujairah, Abu Dhabi, Ras Al Khaimah, and other key UAE markets, Macstroc MEFWELD electrofusion machines are the ideal choice for professional HDPE pipe fusion, pipeline construction, and high-quality infrastructure projects.

The Macstroc MEFWELD Series offers a complete range of high-performance HDPE electrofusion machines designed for precise and reliable welding of HDPE, PP, and PE pipes and fittings. The series includes MEFWELD315, MEFWELD500, MEFWELD630, and MEFWELD1000, catering to pipe diameters from DN20 up to DN1000 mm. Each machine is engineered for durability and efficiency, featuring constant voltage and constant current control modes to ensure strong, leak-proof joints in residential, commercial, and industrial projects.

Built to operate in a wide ambient temperature range from -20°C to 50°C, MEFWELD machines are equipped with robust power systems and precise control mechanisms, delivering consistent output voltage and welding accuracy below 30.5%. These machines also provide ample data storage of up to 270 welding records, allowing operators to monitor and maintain quality across multiple fusion operations.

The MEFWELD Series comes with user-friendly features including a printer USB port for easy data output, enabling seamless documentation of welding projects. Lightweight and portable, these machines range from 15 kg for the MEFWELD315 to 37 kg for the MEFWELD1000, making them suitable for both on-site and workshop use. With input voltages compatible with standard AC supply (220V–380V) and a frequency range of 40–65 Hz, these machines deliver reliable performance across different work environments.

ROLL GROOVING TOOL, MRG-8V1

Model

MEFWELD315
MEFWELD500
MEFWELD630
MEFWELD1000

Welding Range (mm) : DN20–315

Rated Power : 3.5 kW

Input Voltage : AC220V ±20%

Input Frequency : 40–65 Hz

Rated Current : 55 A

Output Voltage : 75 V

Ambient Temperature : -20°C – 50°C

Control Mode : Constant Voltage / Constant Current

Store Data Number : 270

Constant Accuracy : <30.5%

Data Output Port : Printer USB Port

Net Weight : 15 kg

Welding Range (mm) : DN20–500

Rated Power : 12 kW

Input Voltage : AC380V ±20%

Input Frequency : 40–65 Hz

Rated Current : 60 A

Output Voltage : 150 V

Ambient Temperature : -20°C – 50°C

Control Mode : Constant Voltage / Constant Current

Store Data Number : 270

Constant Accuracy : <30.5%

Data Output Port : Printer USB Port

Net Weight : 20 kg

Welding Range (mm) : DN20–630

Rated Power : 15 kW

Input Voltage : AC380V ±20%

Input Frequency : 40–65 Hz

Rated Current : 80 A

Output Voltage : 170 V

Ambient Temperature : -20°C – 50°C

Control Mode : Constant Voltage / Constant Current

Store Data Number : 270

Constant Accuracy : <30.5%

Data Output Port : Printer USB Port

Net Weight : 35 kg

Welding Range (mm) : DN20–1000

Rated Power : 18 kW

Input Voltage : AC380V ±20%

Input Frequency : 40–65 Hz

Rated Current : 80 A

Output Voltage : 280 V

Ambient Temperature : -20°C – 50°C

Control Mode : Constant Voltage / Constant Current

Store Data Number : 270

Constant Accuracy : <30.5%

Data Output Port : Printer USB Port

Net Weight : 37 kg
